A robust high-usage aluminium door system designed for versatility and performance

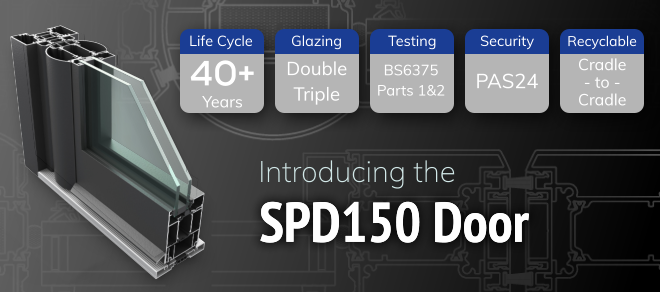

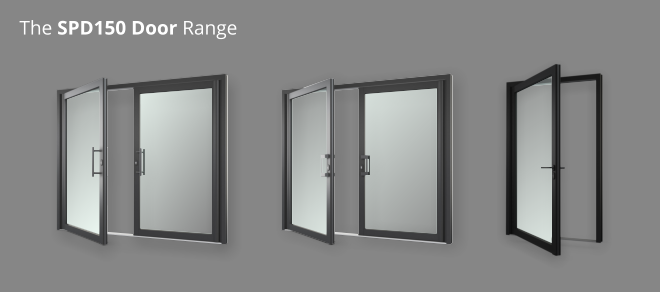

The SPD150 system is designed as a high usage, non-rebated door and framing solution capable of being manufactured as single and double doors, including emergency door types and utilising low thresholds and a variety of options such as radius anti-finger trap stiles. It is a thermally broken polyamide system, capable of accepting glazing up to 48mm thickness
U-Values (Single & Double Doors):
- As low as 1.6 W/m²K (CEN Standard, Double Glazed)
- As low as 1.3 W/m²K (CEN Standard, Triple Glazed)
Testing and Certifications:
- PAS24 (Security)
- BS6375-1 (Weather Tightness)
- BS6375-2 (Operating Forces & Cyclic Testing)
The SPD150 Door System has been engineered for high-traffic applications and offers:
- constructed with square cut components, mechanically jointed using self tapping screws into special sheerblocks
- Glazing compatibility from 28mm to 48mm
- Options include emergency door types and anti-finger trap stiles
